Automatic Solder Wire Feeding Hot Bar Soldering Machine with LCD Display

Nama Merek:	Winsmart
Nomor Model:	SMTS01
Moq:	1 set
harga:	USD1-10000/Set
Detail Pengemasan:	kasus kayu lapis
Ketentuan Pembayaran:	L/C, T/T, Western Union

Informasi Detail

Deskripsi produk

Informasi Detail

Tempat asal:

Tiongkok

Sertifikasi:

Persetujuan CE:

Kuantitas Perlengkapan:

Voltase:

220V/110V

Akurasi Suhu:

Kuantitas Termoda:

Sistem Pengendalian:

Menampilkan:

Kisaran Suhu:

50-500 ℃

Jenis:

Otomatis

Nama Produk:

Mesin Solder Kawat Otomatis

Menyediakan kemampuan:

200 set per bulan

Deskripsi produk

Automatic Solder Wire Feeding Hot Bar Soldering Machine with LCD Display

Automatic Wire Soldering Machine Introduction:

An Automatic Wire Soldering Machine is a precision device designed to automate the process of soldering wires to PCBs (Printed Circuit Boards). These machines are widely used in electronics manufacturing, automotive wiring harness production, and other industries requiring high-speed and high-quality soldering.

Automatic Wire Soldering Machine Features:

1. Use pulse heating technology, the temperature control is accurate, and the temperature sampling frequency is 0.1s

2. Multi stage temperature rise control, ±2℃ soldering precision

3. Real time temperature curve display

4. High precision soldering, ensures consistent solder joints with accurate temperature and positioning.
5. Automatic wire feeding: feeds and positions wires automatically for efficient operation.
6. Programmable operation: offers customizable soldering patterns, timing, and temperature profiles.

Automatic Wire Soldering Machine Specification:

Machine size	500×500×600mm
Working area	Max 200*170mm
Machine weight	62Kg
Working air pressure	0.6-0.8Mpa
Fixture quantity	1
Thermode head size	Max 40*3mm
Welding precision	pitch 0.2mm
Pressing time	1~99.9s
Temperature settings	RT~500℃ tolerance ±5℃
Welding pressure	1~20Kg
Temperature settings	Two
Working environment	10-60℃,40%-95%
Power supply	AC220V±10% 50HZ,2200W
Alignment mode	CCD + LCD Monitor
Feeding mode	Manual
Starting mode	Press start button
Rotation Platform	Cylinder control,tolerance<0.02mm
Thermode material	Molybdenum alloy
Thermode size	Max 60mm long
Origin	China
Fixing mode	Customized fixture
Application	FFC to PCB, FPC to PCB, Wires to PCB
Warranty	12 months

Automatic Wire Soldering Application:

Electronics Manufacturing: For soldering wires to PCB pads, connectors, or terminals.
Automotive Industry: Wiring harness assembly and sensor connections.
Consumer Electronics: Mobile phones, wearables, and small appliances.
Aerospace and Defense: High-reliability solder joints for avionics.
Medical Devices: Precision wiring in diagnostic and therapeutic equipment.
LED Lighting: Soldering wires to LED modules or drivers.

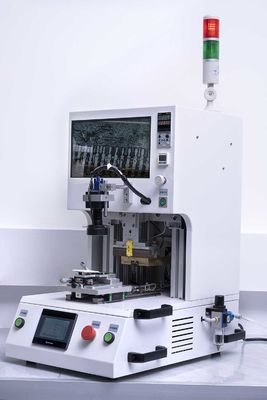

Automatic Solder Wire Feeding Hot Bar Soldering Machine with LCD Display 0

detail produk

Rumah > Produk >

Mesin Solder Hot Bar

Automatic Solder Wire Feeding Hot Bar Soldering Machine with LCD Display

Semua Kategori

Automatic Solder Wire Feeding Hot Bar Soldering Machine with LCD Display

Nama Merek:	Winsmart
Nomor Model:	SMTS01
Moq:	1 set
harga:	USD1-10000/Set
Detail Pengemasan:	kasus kayu lapis
Ketentuan Pembayaran:	L/C, T/T, Western Union

Informasi Detail

Deskripsi produk

Informasi Detail

Tempat asal:

Tiongkok

Nama merek:

Winsmart

Sertifikasi:

Nomor model:

SMTS01

Persetujuan CE:

Kuantitas Perlengkapan:

Voltase:

220V/110V

Akurasi Suhu:

±2°C

Kuantitas Termoda:

Sistem Pengendalian:

PLC

Menampilkan:

LCD

Kisaran Suhu:

50-500 ℃

Jenis:

Otomatis

Nama Produk:

Mesin Solder Kawat Otomatis

Kuantitas min Order:

1 set

Harga:

USD1-10000/Set

Kemasan rincian:

kasus kayu lapis

Waktu pengiriman:

5-8 hari

Syarat-syarat pembayaran:

L/C, T/T, Western Union

Menyediakan kemampuan:

200 set per bulan

Deskripsi produk

Automatic Solder Wire Feeding Hot Bar Soldering Machine with LCD Display

Automatic Wire Soldering Machine Introduction:

Automatic Wire Soldering Machine Features:

1. Use pulse heating technology, the temperature control is accurate, and the temperature sampling frequency is 0.1s

2. Multi stage temperature rise control, ±2℃ soldering precision

3. Real time temperature curve display

Automatic Wire Soldering Machine Specification:

Machine size	500×500×600mm
Working area	Max 200*170mm
Machine weight	62Kg
Working air pressure	0.6-0.8Mpa
Fixture quantity	1
Thermode head size	Max 40*3mm
Welding precision	pitch 0.2mm
Pressing time	1~99.9s
Temperature settings	RT~500℃ tolerance ±5℃
Welding pressure	1~20Kg
Temperature settings	Two
Working environment	10-60℃,40%-95%
Power supply	AC220V±10% 50HZ,2200W
Alignment mode	CCD + LCD Monitor
Feeding mode	Manual
Starting mode	Press start button
Rotation Platform	Cylinder control,tolerance<0.02mm
Thermode material	Molybdenum alloy
Thermode size	Max 60mm long
Origin	China
Fixing mode	Customized fixture
Application	FFC to PCB, FPC to PCB, Wires to PCB
Warranty	12 months

Automatic Wire Soldering Application:

Electronics Manufacturing: For soldering wires to PCB pads, connectors, or terminals.
Automotive Industry: Wiring harness assembly and sensor connections.
Consumer Electronics: Mobile phones, wearables, and small appliances.
Aerospace and Defense: High-reliability solder joints for avionics.
Medical Devices: Precision wiring in diagnostic and therapeutic equipment.
LED Lighting: Soldering wires to LED modules or drivers.

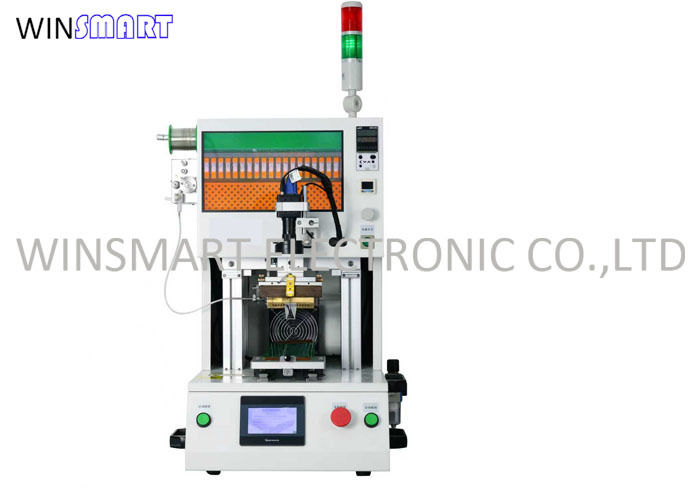

Automatic Solder Wire Feeding Hot Bar Soldering Machine with LCD Display 0
