300x300mm Dust Free No Stress UV Laser PCB Depaneling Machine

Nama Merek:	Winsmart
Nomor Model:	SMTL300
Moq:	1 set
harga:	USD1-150K/set
Detail Pengemasan:	kasus kayu lapis
Ketentuan Pembayaran:	L/C,T/T,Western Union

Informasi Detail

Deskripsi produk

Informasi Detail

Tempat asal:

Tiongkok

Sertifikasi:

Materi PCB:

FR4 FPC

Sumber laser:

25W UV

Meja kerja:

300x300mm, meja ganda

Fixture:

Disesuaikan

Panjang gelombang:

355nm

Nama:

Mesin UV Laser PCB Depaneling

Menyediakan kemampuan:

100 set per bulan

Deskripsi produk

300x300mm Dust Free No Stress UV Laser PCB Depaneling Machine

UV Laser PCB Depaneling Machine Overview:

A UV Laser PCB Depaneling Machine is a high-precision system used to separate (depanel) individual printed circuit board units from a larger panel without mechanical stress or contamination. The 300mm × 300mm working area makes this machine suitable for medium-sized PCBs used in mobile devices, medical devices, automotive electronics, and more.
Unlike traditional depaneling methods (e.g., routing, punching, or V-cutting), this machine uses a UV laser to cleanly and accurately cut through PCB substrates (FR4, polyimide, etc.) with no mechanical contact, ensuring no stress, no dust, and no delamination.

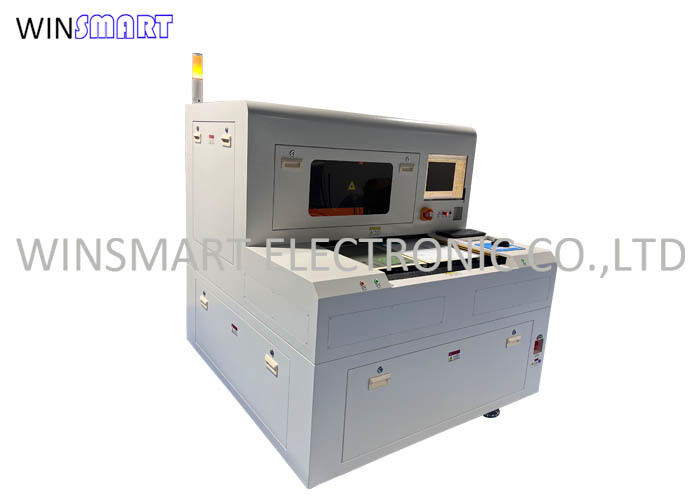

300x300mm Dust Free No Stress UV Laser PCB Depaneling Machine 0

UV Laser PCB Depaneling Machine Features:

300×300mm Working Area: Supports medium-sized PCB panels with high flexibility.

UV Laser Cutting: Uses a 355 nm UV laser for high-precision, low-thermal-impact cutting.

No Mechanical Stress: No contact means no micro-cracks or component damage during depaneling.

Dust-Free Operation: No routing or sawing = zero dust and no need for post-cleaning.

High Precision & Accuracy: Cutting accuracy typically ±10 μm or better.

Vision System: CCD camera for fiducial recognition and dynamic alignment.

Programmable Cut Paths: Supports DXF/Gerber file import for complex board outlines.

Low Heat-Affected Zone (HAZ): UV laser minimizes thermal stress and carbonization.

Safety Enclosure: Fully enclosed design with laser shielding and interlock protection.

Auto Mark Alignment: Ensures perfect alignment for repeated, precision cuts.

UV Laser PCB Depaneling Machine Specifications:

Model	SMTL300, dual tables
Power	380V AC, 50Hz, 20A
Compressed Air	Compressed air
Machine Dimension	1450(L)x1350(W)x1665(H)mm
Installation Space	3000x3000x2500mm
Machine Weight	800kgs
Ambient Temperature	22 ~ 25 ℃
temperature variation	within ± 1 ℃ / 24hr
ambient humidity	within 40% ~ 70% (no obvious condensation is allowed)
Dust free grade	100000 or better
power consumption	6KW
Cutting width	≤ 50mm × 50mm
Cutting materials	full cut / half cut of PCB / FPC, LCP / glue and other related materials
Cutting thickness	≤ 3mm
Cutting speed	≤ 3000mm / S
Overall machining accuracy	≤ 30um
Processing pattern	straight line, slash, curve, abnormity, etc
Laser	355nm light wave nanosecond laser
Repetition frequency	50-150khz
Laser Power	UV 15W@30KHz
Pulse width	< 20ns
Energy stability	< 3% RMS over 8hours
Beam quality m ²	< 1.3
Mode	2500mm/S
Warranty	1 year
Service	Oversea training is available

UV Laser PCB Depaneling Machine Advantages:

UV Laser PCB Depaneling Machine is a high-precision, non-contact depaneling solution designed for cutting, drilling, and marking printed circuit boards (PCBs). It is widely used in electronics, medical devices, automotive, aerospace, and telecommunications industries where high precision and minimal stress are required.

It is used in PCB depaneling due to its short wavelength (355nm) and high absorption efficiency in PCB materials like FR4, polyimide, ceramics, and aluminum-backed substrates. This ensures clean, precise cuts with minimal thermal impact.

UV Laser PCB Depaneling Machine Applications:

Smartphone and tablet PCBs
Wearable device electronics (smartwatches, fitness bands)
Medical and implantable devices
Automotive ADAS and infotainment boards
High-density rigid-flex PCBs
LED panel and lighting module depaneling
